What Should You Evaluate in a Thermoformed Packaging Prototype Before Production?

What Should You Evaluate in a Thermoformed Packaging Prototype Before Production?

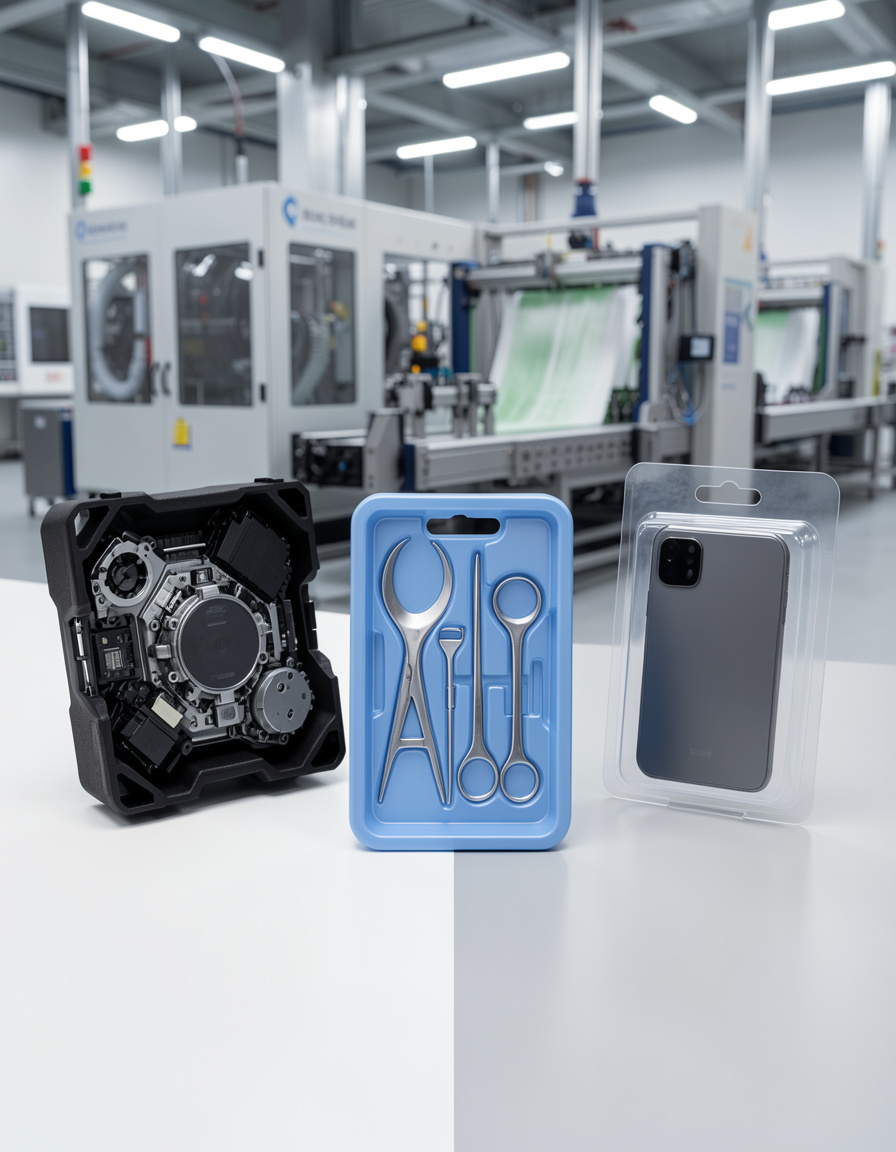

Before approving a thermoformed packaging prototype, evaluate fit, product contact, loading and removal, orientation, handling, and presentation where relevant. Compare the findings with agreed acceptance criteria, then document what is approved, what needs revision, and what remains untested.

For custom thermoformed trays, that means reviewing more than the pocket dimensions. Follow the product through its intended use. The framework below is a planning aid, not a universal test protocol.

Define the Review Scope Before You Start

Identify the product revision, tray revision, prototype material, and available drawings. List differences between the prototype and intended production package, including material, sheet thickness, tooling, and trimming where applicable. Ask which features are representative and which are provisional. A geometry-only mock-up may help assess clearance, but it cannot establish how a formed production tray will behave.

Bring representative products and any relevant lids, cartons, totes, or handling fixtures. Include product variants and dimensional extremes where they affect fit; do not assume that one nominal part represents every allowable condition.

Write down the requirement, review method, expected result, and reviewer. This reflects the traceability principle in general engineering verification guidance, adapted here as a review aid rather than a packaging standard. Agree which criteria must be satisfied before production release.

Review the Thermoformed Packaging Prototype in Use

Work through the actual loading, movement, storage, and removal sequence. Evaluate the following areas together, because a change that improves one can create a problem elsewhere.

Fit and Formed Geometry

Check whether the product seats on its intended supports, clears restricted features, and stays within the allowed range of movement. Look for rocking, wedging, unintended interference, and contact between neighboring products. Measure critical pocket dimensions and interface features against the agreed drawing, not just the tray’s outside dimensions. Agree on the measurement surface and method so both teams evaluate the same feature.

Inspect corners, walls, rims, and trimmed edges for distortion, cracks, or snag points. Society of Plastics Engineers guidance on thermoformed corners explains that stretching thins sheet material and smaller corner radii generally produce thinner corner walls. Discuss local formed-wall thickness where it matters; starting sheet thickness alone is not that measurement.

Product Contact and Surface Protection

Map where contact is allowed, where support is needed, and which surfaces must remain untouched. Include cosmetic faces, coatings, edges, connectors, and other sensitive features relevant to the product.

Inspect the product before and after the agreed handling sequence so existing marks are not mistaken for new damage. Record scuffing, pressure marks, or unexpected rubbing and identify the contact location. A visually acceptable tray is not enough when the product surface is the acceptance concern. For a no-contact requirement, verify clearance or contact directly; an unmarked surface alone is not proof.

Illustrative scenario: a tray retains a machined component, but its polished face rubs during removal. Treat retention and surface protection as separate criteria. After changing a support or clearance feature, repeat both checks rather than assuming improved access preserved retention.

Loading and Removal

Have intended users try the normal loading and removal method with their usual gloves and tools. This user-and-environment focus also appears in general engineering validation guidance. Observe finger clearance, grip access, snagging, and whether extraction requires prying or touching a restricted surface.

For automated handling, review the proposed pickup points and equipment clearances with the equipment owner. A manual demonstration does not establish machine compatibility. Where insertion or removal force matters, agree on a measurement method and limits rather than recording only “feels tight.”

Orientation, Stacking, and Handling

Check whether the product and tray can be loaded backward or rotated incorrectly. Decide whether geometry, identification, or a work instruction should control orientation. Confirm the required position at each handoff, including inspection and unloading.

During agreed lift-and-transfer checks, watch for tray flexing, product movement, or loss of support. Record the loading pattern and how the tray is supported.

Where stacking is intended, evaluate loaded trays in the agreed configuration. Check whether the tray above contacts the product below, whether the stack remains aligned, and whether trays separate as intended. Review empty-tray nesting separately. Use the planned carton or tote when it affects support; a tabletop stack does not establish a transport load rating. For intended reuse, agree on evaluation cycles and post-use checks rather than inferring service life from a single handling sequence.

Presentation Where It Affects Acceptance

For a visible insert or customer-facing tray, review product position, visibility, surface appearance, and access in the intended display arrangement. Include adjacent packaging components where they affect the view or fit. Define acceptable appearance with agreed reference images or samples; do not substitute “looks good” for an approval criterion.

Turn Observations Into Agreed Acceptance Criteria

Use a shared review record so engineering and quality evaluate the same requirement. The examples below are discussion prompts, not Custom-Made specifications or test results. Add the project’s limits, inspection conditions, sample coverage, and approval authority before use.

For measured criteria, agree on units, methods, and decision rules. For appearance, define viewing conditions and a reference. Record the sample quantity so a brief demonstration is not mistaken for evidence about every production part.

Illustrative Prototype Acceptance Criteria

Examples of criteria to agree and evidence to record, not company specifications or test results.

Mark each criterion pass, fail, not evaluated, or not applicable with a reason. Retain measurements, photographs, sample identifiers, and the exact configuration reviewed. Record each issue, its owner, the required change, and the evidence needed to close it. An untested requirement is not a pass.

Separate Prototype Findings From Production Evidence

A fit review does not prove shipping performance. International Safe Transit Association (ISTA) guidance calls for defined product-damage and package-condition criteria before testing and samples representative of production. Its test-procedure overview distinguishes early screening from transport simulation. Select any required testing around the actual distribution environment and complete packaged product.

Before approval, identify which checks require production-representative parts or packaging and who will perform them. Keep material documentation and specialized application requirements separate from a visual review. Confirm the availability and scope of any testing service with the supplier rather than assuming it is included.

Close the review with a revision-specific decision: approve the stated scope, revise and review again, or hold for missing evidence. Distinguish approval to make evaluation parts from authorization for routine production. Revisit affected criteria after design or material changes instead of carrying the previous approval forward automatically.
